classical_particles_oct_m::classical_particles_t Type Reference

Detailed Description

Definition at line 168 of file classical_particles.F90.

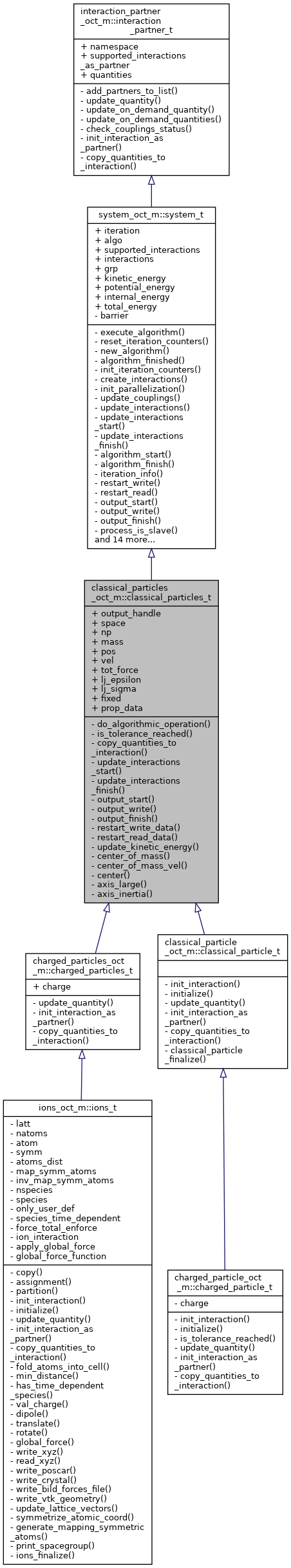

Inheritance diagram for classical_particles_oct_m::classical_particles_t:

Public Attributes
type(c_ptr), dimension(2), public	output_handle
type(space_t), public	space
	Dimensions of physical space. More...
integer, public	np
	Number of particles in the system. More...
real(real64), dimension(:), allocatable, public	mass
	Mass of the particles. More...
real(real64), dimension(:,:), allocatable, public	pos
	Position of the particles. More...
real(real64), dimension(:,:), allocatable, public	vel
	Velocity of the particles. More...
real(real64), dimension(:,:), allocatable, public	tot_force
	Total force acting on each particle. More...
real(real64), dimension(:), allocatable, public	lj_epsilon
	Lennard-Jones epsilon. More...
real(real64), dimension(:), allocatable, public	lj_sigma
	Lennard-Jones sigma. More...
logical, dimension(:), allocatable, public	fixed
	True if a giving particle is to be kept fixed during a propagation. More...
type(propagator_data_t), public	prop_data
Public Attributes inherited from system_oct_m::system_t
type(iteration_counter_t), public	iteration
class(algorithm_t), pointer, public	algo => null()
integer, dimension(:), allocatable, public	supported_interactions
type(interaction_list_t), public	interactions
	List with all the interactions of this system. More...
type(mpi_grp_t), public	grp
	mpi group for this system More...
real(real64), public	kinetic_energy
	Energy not from interactions, like the kinetic energy. More...
real(real64), public	potential_energy
	Energy from the interactions with external systems. More...
real(real64), public	internal_energy
	Energy from the interactions with itself and for containers. More...
real(real64), public	total_energy
	Sum of internal, external, and self energy. More...
Public Attributes inherited from interaction_partner_oct_m::interaction_partner_t
type(namespace_t), public	namespace
integer, dimension(:), allocatable, public	supported_interactions_as_partner
	list of interactions, which support this interaction_partner_t as partner More...
type(quantity_list_t), public	quantities
	List of quantities known by the system. More...

Private Member Functions
procedure	do_algorithmic_operation => classical_particles_do_algorithmic_operation
procedure	is_tolerance_reached => classical_particles_is_tolerance_reached
procedure	copy_quantities_to_interaction => classical_particles_copy_quantities_to_interaction
procedure	update_interactions_start => classical_particles_update_interactions_start
procedure	update_interactions_finish => classical_particles_update_interactions_finish
procedure	output_start => classical_particles_output_start
procedure	output_write => classical_particles_output_write
procedure	output_finish => classical_particles_output_finish
procedure	restart_write_data => classical_particles_restart_write_data
procedure	restart_read_data => classical_particles_restart_read_data
procedure	update_kinetic_energy => classical_particles_update_kinetic_energy
procedure	center_of_mass => classical_particles_center_of_mass
procedure	center_of_mass_vel => classical_particles_center_of_mass_vel
procedure	center => classical_particles_center
procedure	axis_large => classical_particles_axis_large
procedure	axis_inertia => classical_particles_axis_inertia

Member Function/Subroutine Documentation

do_algorithmic_operation()

procedure classical_particles_oct_m::classical_particles_t::do_algorithmic_operation

private

Definition at line 183 of file classical_particles.F90.

is_tolerance_reached()

procedure classical_particles_oct_m::classical_particles_t::is_tolerance_reached

private

Definition at line 184 of file classical_particles.F90.

copy_quantities_to_interaction()

procedure classical_particles_oct_m::classical_particles_t::copy_quantities_to_interaction

private

Definition at line 185 of file classical_particles.F90.

update_interactions_start()

procedure classical_particles_oct_m::classical_particles_t::update_interactions_start

private

Definition at line 186 of file classical_particles.F90.

update_interactions_finish()

procedure classical_particles_oct_m::classical_particles_t::update_interactions_finish

private

Definition at line 187 of file classical_particles.F90.

output_start()

procedure classical_particles_oct_m::classical_particles_t::output_start

private

Definition at line 188 of file classical_particles.F90.

output_write()

procedure classical_particles_oct_m::classical_particles_t::output_write

private

Definition at line 189 of file classical_particles.F90.

output_finish()

procedure classical_particles_oct_m::classical_particles_t::output_finish

private

Definition at line 190 of file classical_particles.F90.

restart_write_data()

procedure classical_particles_oct_m::classical_particles_t::restart_write_data

private

Definition at line 191 of file classical_particles.F90.

restart_read_data()

procedure classical_particles_oct_m::classical_particles_t::restart_read_data

private

Definition at line 192 of file classical_particles.F90.

update_kinetic_energy()

procedure classical_particles_oct_m::classical_particles_t::update_kinetic_energy

private

Definition at line 193 of file classical_particles.F90.

center_of_mass()

procedure classical_particles_oct_m::classical_particles_t::center_of_mass

private

Definition at line 194 of file classical_particles.F90.

center_of_mass_vel()

procedure classical_particles_oct_m::classical_particles_t::center_of_mass_vel

private

Definition at line 195 of file classical_particles.F90.

center()

procedure classical_particles_oct_m::classical_particles_t::center

private

Definition at line 196 of file classical_particles.F90.

axis_large()

procedure classical_particles_oct_m::classical_particles_t::axis_large

private

Definition at line 197 of file classical_particles.F90.

axis_inertia()

procedure classical_particles_oct_m::classical_particles_t::axis_inertia

private

Definition at line 198 of file classical_particles.F90.

Member Data Documentation

output_handle

type(c_ptr), dimension(2), public classical_particles_oct_m::classical_particles_t::output_handle

Definition at line 170 of file classical_particles.F90.

space

type(space_t), public classical_particles_oct_m::classical_particles_t::space

Dimensions of physical space.

Definition at line 171 of file classical_particles.F90.

np

integer, public classical_particles_oct_m::classical_particles_t::np

Number of particles in the system.

Definition at line 172 of file classical_particles.F90.

mass

real(real64), dimension(:), allocatable, public classical_particles_oct_m::classical_particles_t::mass

Mass of the particles.

Definition at line 173 of file classical_particles.F90.

pos

real(real64), dimension(:,:), allocatable, public classical_particles_oct_m::classical_particles_t::pos

Position of the particles.

Definition at line 174 of file classical_particles.F90.

vel

real(real64), dimension(:,:), allocatable, public classical_particles_oct_m::classical_particles_t::vel

Velocity of the particles.

Definition at line 175 of file classical_particles.F90.

tot_force

real(real64), dimension(:,:), allocatable, public classical_particles_oct_m::classical_particles_t::tot_force

Total force acting on each particle.

Definition at line 176 of file classical_particles.F90.

lj_epsilon

real(real64), dimension(:), allocatable, public classical_particles_oct_m::classical_particles_t::lj_epsilon

Lennard-Jones epsilon.

Definition at line 177 of file classical_particles.F90.

lj_sigma

real(real64), dimension(:), allocatable, public classical_particles_oct_m::classical_particles_t::lj_sigma

Lennard-Jones sigma.

Definition at line 178 of file classical_particles.F90.

fixed

logical, dimension(:), allocatable, public classical_particles_oct_m::classical_particles_t::fixed

True if a giving particle is to be kept fixed during a propagation.

Definition at line 179 of file classical_particles.F90.

prop_data

type(propagator_data_t), public classical_particles_oct_m::classical_particles_t::prop_data

Definition at line 181 of file classical_particles.F90.

---

The documentation for this type was generated from the following file:

• classical/classical_particles.F90
