Maxwell Input File
Input file variable description
Calculation mode and parallelization strategy
At the beginning of the input file, the basic variable CalculationMode selects the run mode of Octopus and has to be set always. In case of a parallel run, there are some variables to set the proper parallelization options. For Maxwell propagations, parallelization in domains is possible, but parallelization in states is not needed, as there are always 3 or 6 states, depending on the Hamiltonian (see below).
CalculationMode = td
The Maxwell system is implemented as part of the Octopus multisystem framework. This allows to calculate several different systems, which can interact with each other.
Currently implemented system types are:
- electronic: An electronic system. (only partly implemented)
- maxwell: A maxwell system.
- classical_particle: A classical particle. Used for testing purposes only.
- charged_particle: A charged classical particle.
- multisystem: A container system containing other systems.
- dftbplus: A DFTB+ system
- linear_medium: A (static) linear medium for classical electrodynamics.
- dispersive_medium: A (dispersive) linear medium (only the Drude model is currently implemented)
Definition of the systems
In this tutorial, we will use a pure Maxwell system:
ExperimentalFeatures = yes %Systems 'Maxwell' | maxwell %
Subsequently, variables relating to a named system are prefixed by the system name. However, this prefix is not mandatory for calculations considering only one system.
Maxwell box variables and parameters

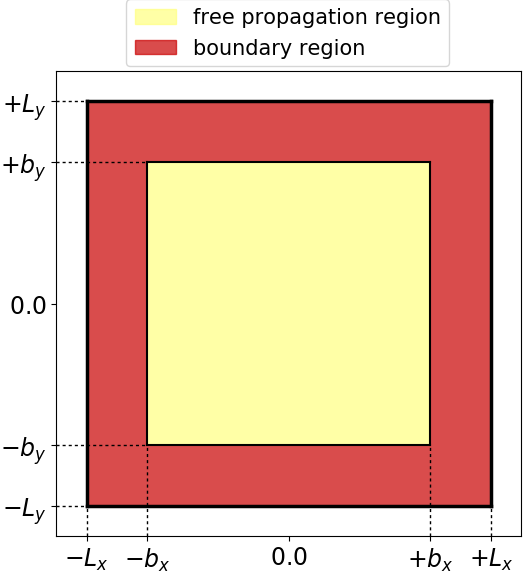

The Maxwell simulation box is of parallelepiped shape, and is divided into mainly two regions: one inner region for the requested propagation and an outer region to simulate the proper boundary conditions. In the input file, the simulation box sizes refer to the total simulation box which includes the boundary region. The inner simulation box is defined by the total box size minus the boundary width. In case of zero boundary condition, there is no boundary region.

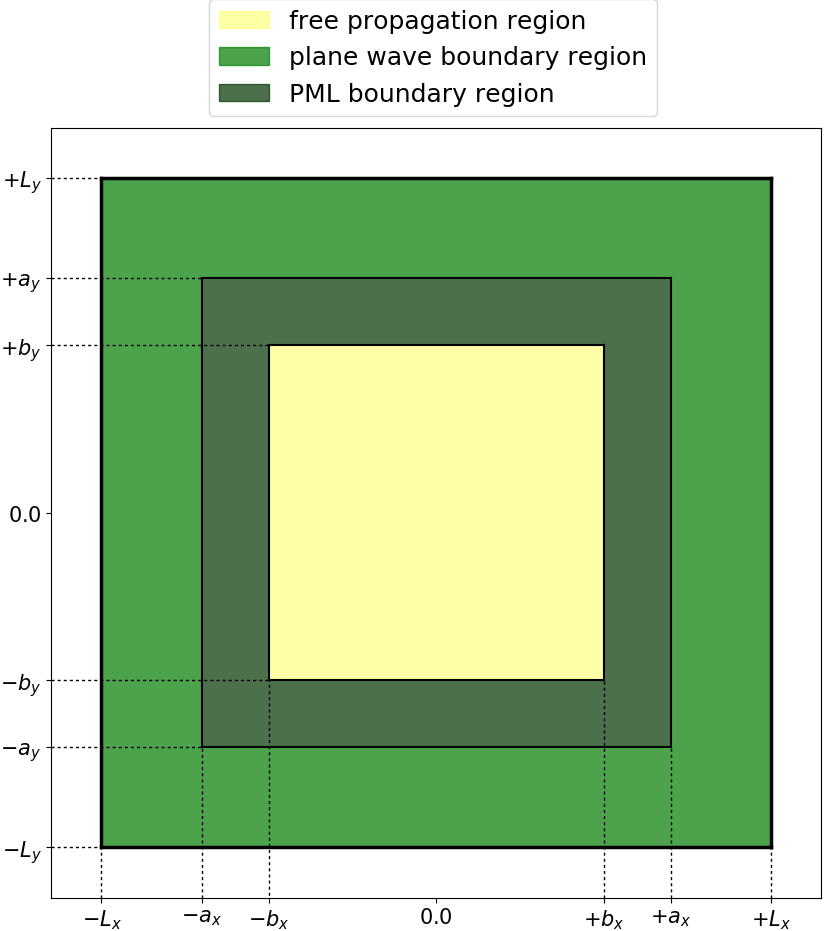

The boundary region can be set up by absorbing boundaries, incident plane waves or a combination of both. In the latter case, the absorbing boundary region is the inner boundary region, and the plane waves region is the outer boundary region. Again, the box sizes are determined by the total simulation box size and the corresponding boundary width.
For a given size of the propagation region, the boundaries
have to be added to the total box size. The boundary width is given by the
derivative order (default is 4) times the spacing. The width of the absorbing
boundary region is defined by the variable
First, the Maxwell propagation operator options consist of the type of
MaxwellHamiltonianOperator, which normally will be a
Maxwell Hamiltonian for propagation in vacuum (faraday_ampere). This options is also used
for dispersive media. For linear (static) media, one should set the Maxwell-Hamiltonian
that works for a linear medium (faraday_ampere_medium).
Currently, the Maxwell system does not define its own propagator, but uses the
system default propagator, defined in
far, only the exponential midpoint is implemented.
The Maxwell Boundary conditions can be chosen for each direction differently
MaxwellBoundaryConditions. Possible choices are zero,
plane waves and constant field boundary conditions. Additionally to the boundary condition,
the code can include absorbing boundaries. This means that all outgoing waves are absorbed
while all incoming signals still arise at the boundaries and propagate into
the simulation box. The absorbing boundaries can be achieved by a mask
function or by a perfectly matched layer (PML) calculation with additional
parameters. For more information on the physical meaning of these parameters,
please refer to the Maxwell-TDDFT paper.
MaxwellHamiltonianOperator = faraday_ampere # Boundary conditions for each dimension (zero, constant or plane waves) %MaxwellBoundaryConditions plane_waves | plane_waves | plane_waves % # Absorbing boundaries option (not absorbing, mask or CPML)s %MaxwellAbsorbingBoundaries cpml | cpml | cpml % # Absorbing boundary width for the mask or CPML boundaries MaxwellABWidth = 5.0 # Parameters to tune the Maxwell PML (they have safe defaults) MaxwellABPMLPower = 2.0 MaxwellABPMLReflectionError = 1e-16
The output option
OutputFormat can be used exactly as in the
case of TDDFT calculations, with the exception that some formats are inconsistent
with a Maxwell calculation (like xyz). It is possible to chose multiple
formats. The Maxwell output options are defined in the
MaxwellOutput block (written to output_iter every
MaxwellOutputInterval steps) and through the
MaxwellTDOutput (written to td.general every step).
# Full space-resolved outputs, to be written to the Maxwell/output_iter folder, # every MaxwellOutputInterval steps (Check variable documentation for full list of possible options) %MaxwellOutput electric_field | axis_z magnetic_field | plane_x % MaxwellOutputInterval = 10 # Output of the scalar Maxwell variables for each time step, written into the td.general folder # (the fields are evaluated at all MaxwellFieldsCoordinate points) MaxwellTDOutput = maxwell_energy + maxwell_total_e_field # Coordinates of the grid points, which corresponding electromagnetic field values are # written into td.general/maxwell_fields %MaxwellFieldsCoordinate 0.00 | 0.00 | 0.00 1.00 | 0.00 | 1.00 %
Time step variables
TDTimeStep option in general defines the time step used
for each system. For the stability of the time propagation,
Maxwell systems need to fulfill the Courant condition. In some cases larger
time steps are possible but this should be checked case by case.
TDSystemPropagator = exp_mid # TDTimeStep should be equal or smaller than the Courant criterion, which is here # S_Courant = 1 / (sqrt(c^2/dx_mx^2 + c^2/dx_mx^2 + c^2/dx_mx^2)) TDTimeStep = 0.002 # Total simulation time TDPropagationTime = 0.4
Maxwell field variables
The incident plane waves can be defined at the boundaries using the
MaxwellIncidentWaves block. This block defines the incoming wave
type and complex electric field amplitude, and an envelope function
name, which must be defined in a separate
MaxwellFunctions block. Multiple plane waves can be
defined, and their superposition gives the final incident wave result at the
boundary. This plane waves boundaries are evaluated at each time step, and give
the boundary conditions for the propagation inside the box. To use them
MaxwellBoundaryConditions must be set to “plane_waves” in the
MaxwellFunctions block reads the additional required
information for the plane wave pulse, for each envelope function name given in
Inside the simulation box, the initial electromagnetic field is set up by the
UserDefinedInitialMaxwellStates block. If the pulse
parameters are such that it is completely outside the box at the initial time,
this variables does not need to be set, as the default initial field inside the
box is zero.
If the incident wave pulse should have initially a non-zero value
inside the box, and
UserDefinedInitialMaxwellStates is not set,
the initial field will be zero by default. This means having a discontinuity
at the boundaries for t=0, which will lead to an erroneous result!
In case of
MaxwellPlaneWavesInBox = yes,
no Maxwell propagation is done, but instead the field
is set analytically at each time step using the parameters defined in
# ----- Maxwell field variables ----------------------------------------------------------------- # Plane waves input block %MaxwellIncidentWaves plane_wave_mx_function | Ex1 | Ey1 | Ez1 | "plane_waves_func_1" % # Predefined envelope function %MaxwellFunctions "plane_waves_func_1" | mxf_cosinoidal_wave | kx1 | ky1 | kz1 | psx1 | psy1 | psz1 | pw1 % # Definition of the initial EM field inside the box: # (can be an arbitrary formula, from a file, or using the info from the MaxwellIncidentWaves block) %UserDefinedInitialMaxwellStates use_incident_waves % # If incident plane waves should be evaluated analytically inside the simulation box # (disabling Maxwell propagation, only direct evaluation) MaxwellPlaneWavesInBox = no
An external current can be added to the internal current. Its spatial and
temporal profile are analytical, and the formulas are defined by the
UserDefinedMaxwellExternalCurrent block. This block defines
the spatial profile and frequency of each current source, and it sets an
envelope function name, that must be defined in a separate
# Switch on external current density ExternalCurrent = yes # External current profile parameters (spatial profile formulas, frequency and envelope function name) %UserDefinedMaxwellExternalCurrent current_td_function | "jx(x.y,z)" | "jy(x,y,z)" | "jz(x,y,z)" | omega | "env_func" % # Envelope function in time for the external current density %TDFunctions "env_func” | tdf_gaussian | 1.0 | tw | t0 %
Different shapes of dispersive and non-dispersive linear media can be included in the calculation either through a pre-defined box shape (parallelepiped, sphere or cylinder), or through a file describing more complex geometries. For more information check the Linear Medium tutorial.
