1D Helium

The next example will be the helium atom in one dimension which also has two electrons, just as we used for the harmonic oscillator. The main difference is that instead of describing two electrons in one dimension we will describe one electron in two dimensions. The calculation in this case is not a DFT one, but an exact solution of the Schr̦dinger equation Рnot an exact solution of the helium atom, however, since it is a one-dimensional model.

Equivalence between two 1D electrons and one 2D electron

To show that we can treat two electrons in one dimension as one electron in two dimensions, lets start by calling $x,$ and $y,$ the coordinates of the two electrons. The Hamiltonian would be (note that the usual Coulomb interaction between particles is usually substituted, in 1D models, by the soft Coulomb potential, $u(x)=(1+x^2)^{(-1/2)}\,$):

$$ \hat{H} = -\frac{1}{2}\frac{\partial^2}{\partial x^2} -\frac{1}{2}\frac{\partial^2}{\partial y^2} +\frac{-2}{\sqrt{1+x^2}}+\frac{-2}{\sqrt{1+y^2}}+\frac{1}{\sqrt{1+(x-y)^2}}. $$

Instead of describing two electrons in one dimension, however, we may very well think of one electron in two dimensions, subject to a external potential with precisely the shape given by:

$$ \frac{-2}{\sqrt{1+x^2}}+\frac{-2}{\sqrt{1+y^2}}+\frac{1}{\sqrt{1+(x-y)^2}} \,, $$

Since the Hamiltonian is identical, we will get the same result. Whether we regard $x,$ and $y,$ as the coordinates of two different particles in one dimension or as the coordinates of the same particle along the two axes in two dimensions is entirely up to us. (This idea can actually be generalized to treat two 2D particles via a 4D simulation in Octopus too!) Since it is usually easier to treat only one particle, we will solve the one-dimensional helium atom in two dimensions. We will also therefore get a “two-dimensional wave-function”. In order to plot this wave-function we specify an output plane instead of an axis.

Input

With the different potential and one more dimension the new input file looks like the following


CalculationMode = gs

Dimensions = 2
TheoryLevel = independent_particles

BoxShape = parallelepiped
Lsize = 8
Spacing = 0.1

%Output
  wfs | plane_z
%

%Species
 "helium" | species_user_defined | potential_formula | "-2/(1+x^2)^(1/2)-2/(1+y^2)^(1/2)+1/(1+(x-y)^2)^(1/2)" | valence | 1
%

%Coordinates
 "helium"| 0 | 0
%

For more information on how to write a potential formula expression, see Input file.

We named the species “helium” instead of “He” because “He” is already the name of a pseudopotential for the actual 3D helium atom.

Running

The calculation should converge within 14 iterations. As usual, the results are summarized in the static/info file, where you can find


...

**************************** Theory Level ****************************
Input: [TheoryLevel = independent_particles]
**********************************************************************

SCF converged in   19 iterations

Some of the states are not fully converged!
Eigenvalues [H]
 #st  Spin   Eigenvalue      Occupation
   1   --    -2.238257       1.000000

Energy [H]:
      Total       =        -2.23825730
      Free        =        -2.23825730
      -----------
      Ion-ion     =         0.00000000
      Eigenvalues =        -2.23825730
      Hartree     =         0.00000000
      Int[n*v_xc] =         0.00000000
      Exchange    =         0.00000000
      Correlation =         0.00000000
      vanderWaals =         0.00000000
      Delta XC    =         0.00000000
      Entropy     =         1.38629436
      -TS         =        -0.00000000
      Photon ex.  =         0.00000000
      Kinetic     =         0.28972534
      External    =        -2.52798263
      Non-local   =         0.00000000
      Int[n*v_E]  =         0.00000000

Dipole:                 [b]          [Debye]
       =    7.96314E-09      2.02403E-08
       =    5.29230E-09      1.34517E-08

Convergence:
      abs_energy =  1.16795462E-13 ( 0.00000000E+00) [H]
      rel_energy =  5.21814281E-14 ( 0.00000000E+00)
      abs_dens =  4.73555664E-08 ( 0.00000000E+00)
      rel_dens =  4.73555664E-08 ( 1.00000000E-06)
      abs_evsum =  1.16795462E-13 ( 0.00000000E+00) [H]
      rel_evsum =  5.21814281E-14 ( 0.00000000E+00)

As we are running with non-interacting electrons, the Hartree, exchange and correlation components of the energy are zero. Also the ion-ion term is zero, as we only have one “ion”.

Unoccupied States

Now you can do just the same thing we did for the harmonic oscillator and change the unoccupied calculation mode:


CalculationMode = unocc

Dimensions = 2
TheoryLevel = independent_particles

BoxShape = parallelepiped
Lsize = 8
Spacing = 0.1

%Output
  wfs | plane_z
%
OutputWfsNumber = "1-3"

%Species
 "helium" | species_user_defined | potential_formula | "-2/(1+x^2)^(1/2)-2/(1+y^2)^(1/2)+1/(1+(x-y)^2)^(1/2)" | valence | 1
%

%Coordinates
 "helium"| 0 | 0
%

ExtraStates = 5

We have added extra states and also restricted the wavefunctions to plot (OutputWfsNumber = "1-4,6").

The results of this calculation can be found in the file static/eigenvalues . In this case it looks like


Some of the states are not fully converged!
Criterion =      0.100000E-05

Eigenvalues [H]
 #st  Spin   Eigenvalue      Occupation     Error
   1   --    -2.238257       1.000000      (2.9E-06)
   2   --    -1.815718       0.000000      (7.9E-07)
   3   --    -1.701549       0.000000      (9.7E-07)
   4   --    -1.629240       0.000000      (9.6E-07)
   5   --    -1.608656       0.000000      (9.3E-07)
   6   --    -1.509599       0.000000      (4.1E-07)

Apart from the eigenvalues and occupation numbers we asked Octopus to output the wave-functions. To plot them, we will use gnuplot. You start it and type


set xlabel "x1"
set ylabel "x2"
set t postscript enhanced color font "Monospace-Bold,20" landscape size 11,8.5
set key top left

set hidden3d
set pm3d
set contour
set ticslevel 0
unset key
unset surface

set output "Wfs-st0001.eps"
splot 'static/wf-st0001.z=0' using 1:2:3

set output "Wfs-st0002.eps"
splot 'static/wf-st0002.z=0' using 1:2:3

set output "Wfs-st0003.eps"
splot 'static/wf-st0003.z=0' using 1:2:3

We plot the ground-state, 1st and 2nd excited-state wave-functions. (If you get this, ignore it: warning: Cannot contour non grid data. Please use "set dgrid3d".) Which correspond to singlet and which to triplet states?

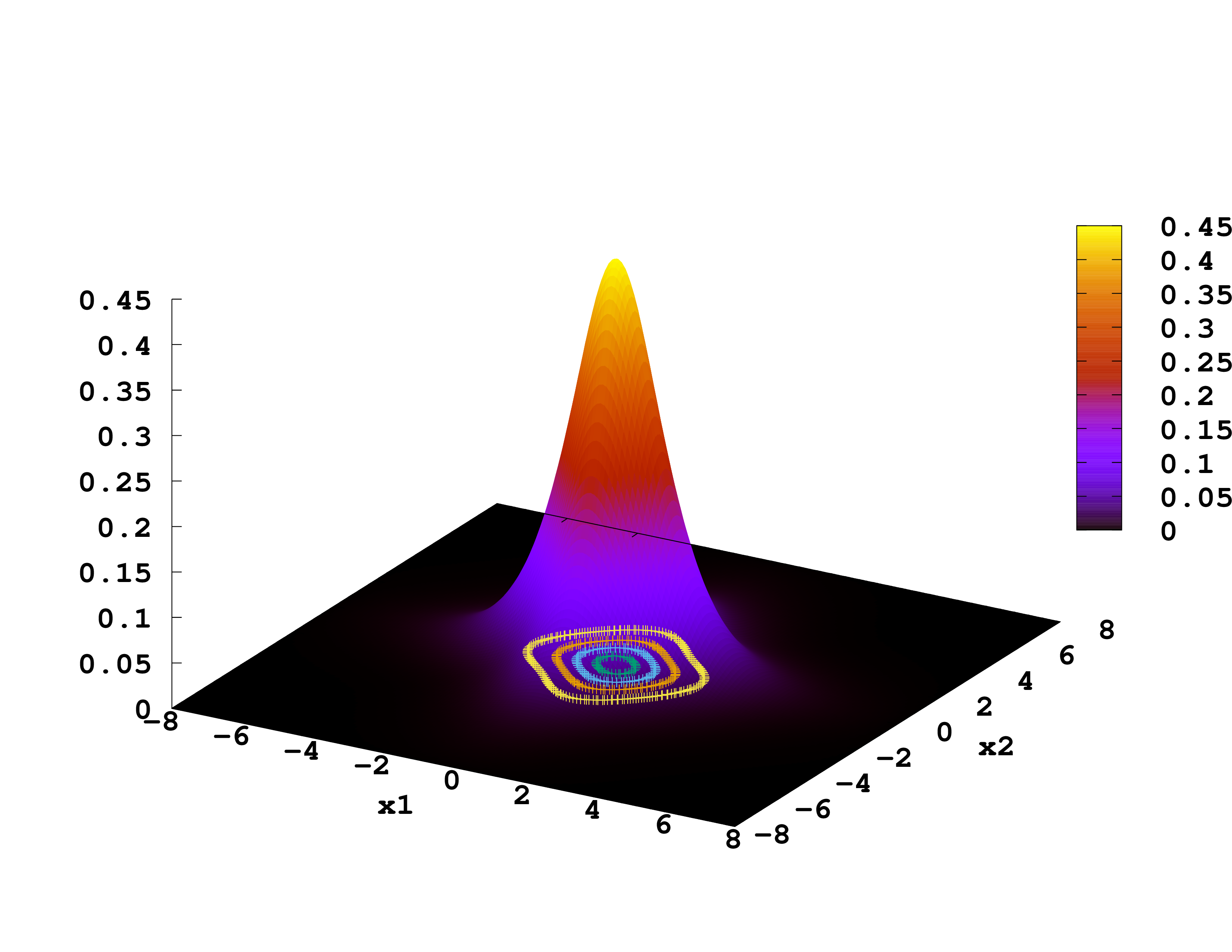

Ground-state of He in 1D

Ground-state of He in 1D
1st excited-state of He in 1D
1st excited-state of He in 1D
2nd excited-state of He in 1D
2nd excited-state of He in 1D

Exercises
